Profession | Precision | Exellence

DIN 2353 / ISO 8434-1
Cutting Rings in stainless steel

We believe focus brings exllence.

01

Compatible quality

Quality is the key. We pursue high quality products through our 30 years journey which are compatible with world well-known brand such as Parker.

02

Fast delivery

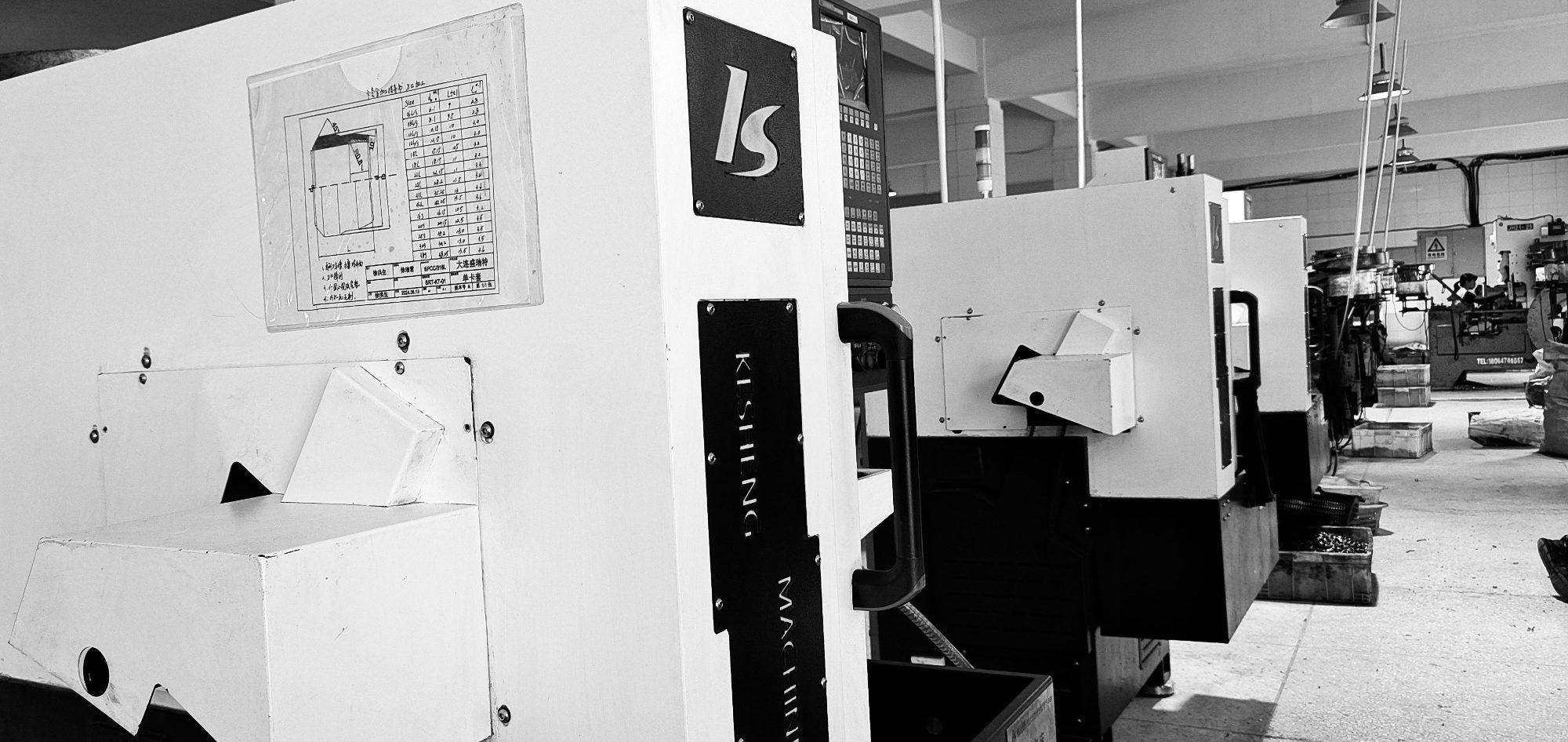

With innovation in manufacturing processes, our production capability allows us to serve our clients with fast reation and delivery.

03

Outstanding performance

Our DIN3861 single cutting rings with unique heat treatment processes, are expecially excellent at cutting high hardness steel tubes in some special situations.

04

After sales services

Continuous growing with our clients is our goal. We provide services through the whole journey after sales and with our strong product expertise, we are able to support our client on site in any situation.

Our Products

1

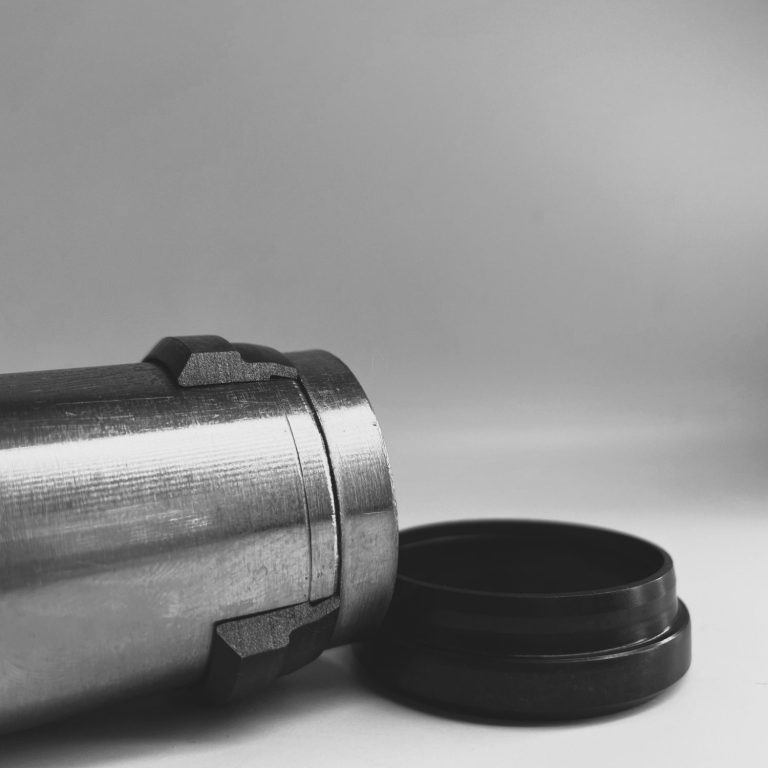

Cutting Rings DIN3861

We offer cutting rings suitable for both light and heavy series, for tube diameters from 6 to 12 mm, with a working pressure of up to 630 bar. Cutting rings for the light series are ideal for diameters ranging from 15 to 42 mm, with working pressures from 160 to 315 bar. As for heavy series, rings are available for tube diameters from 14 to 38 mm, with working pressures ranging from 315 to 630 bar.  Materials are in 316L, 316Ti or SPCC.

2

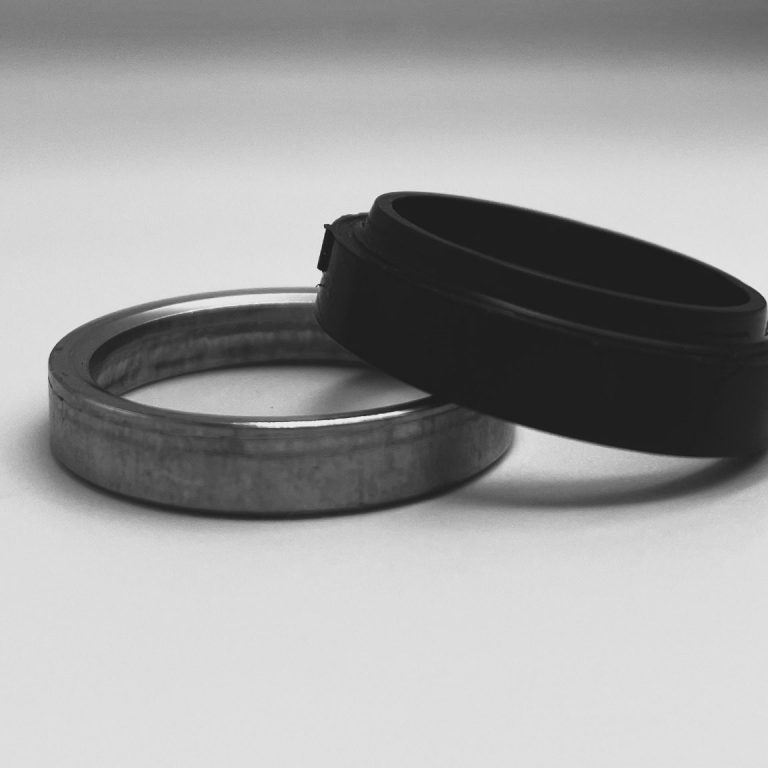

Soft Cutting Sealing Ring NBR

We offer soft cutting sealing rings with NBR from size 6mm to 42mm both in light and heavy series. The maximum pressure can reach up tp 800 bar.

3

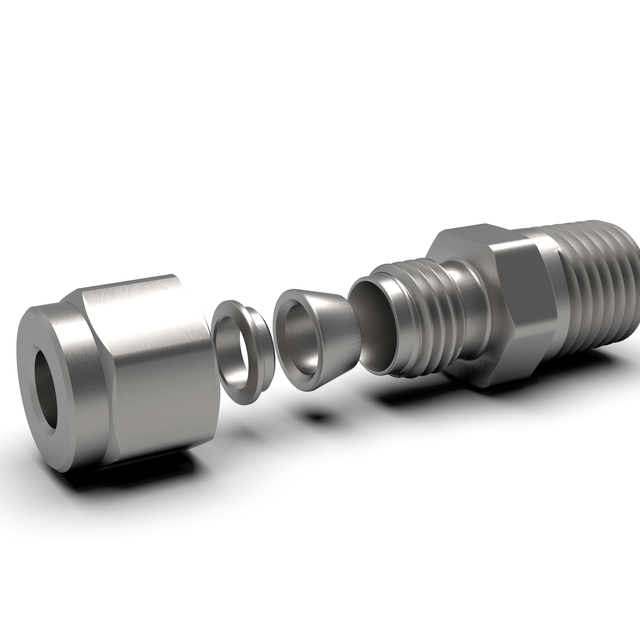

Double Ferrules DIN2353

We offer double ferrules set including front and rear ferrule in 316L/1.4404 for DIN2353 compression fittings with compression ends for metric tubes. The ferrules cover working pressure up to 630 bar with sizes from 4mm to 42mm.

4

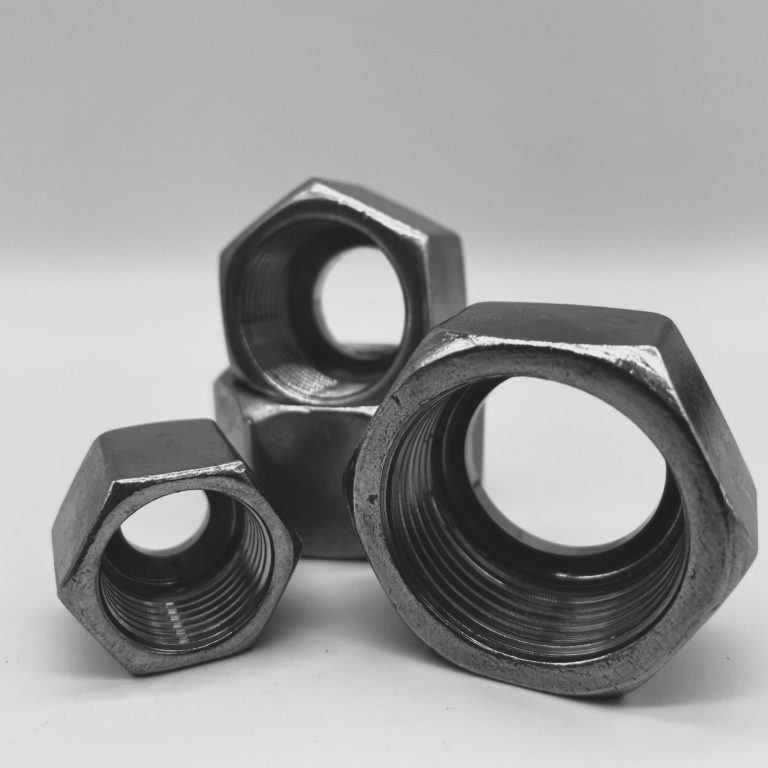

NUts DIN3870

We offer metric nuts in 316L/1.4404 both in light and heavy series from size 6M to 38M. The nuts cover working pressure up tp 630 bar depending on the size.
